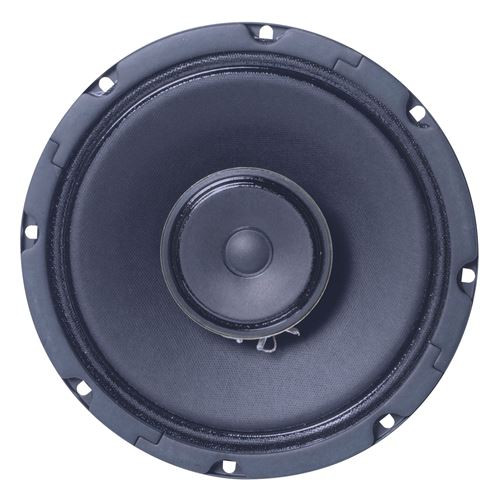

Atlas C803AT87-HC 8" In-Ceiling Coaxial Loudspeaker with 4-Watt 70V Transformer and Hyfidrophobic Treatment

Model C803AT87-HC, A high-quality 16-watt loud loudspeaker with a factory-installed 70.7V 8W linematching transformerModel C803AT87-HC utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°,. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.The C803A combines a full-size (203mm) dia. low-frequency reproducer and a 3", (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet, the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.The unit is factory treated with AtlasIED's nanotechnology Hyfidrophobic environmental treatment coating.
