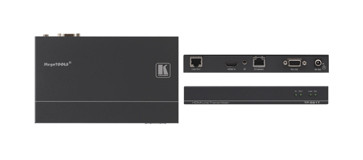

Kramer TP-581T HDMI, Bidirectional RS-232, Ethernet & IR over Twisted Pair Transmitter

The Kramer TP-581T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-581T takes the HDMI input, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK®, audio outputs. , , , Max. Data Rate - 3.4Gbps. , , , HDTV Compatible. , , , HDCP Compliance. , , , HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color&trade,, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC). , , , 3D Pass-Through. , , , EDID PassThru - Passes EDID/HDCP signals from source to display. , , , Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit. , , , Ethernet Interface - Passes 100BaseT. , , , System Range - Up to 100m (330ft). , , , Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer 's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. , , , Control - Front panel. , , , Indicators - Status LEDs for input selection, output, link and power. , , , Compact MegaTOOLS®, - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
