NTI

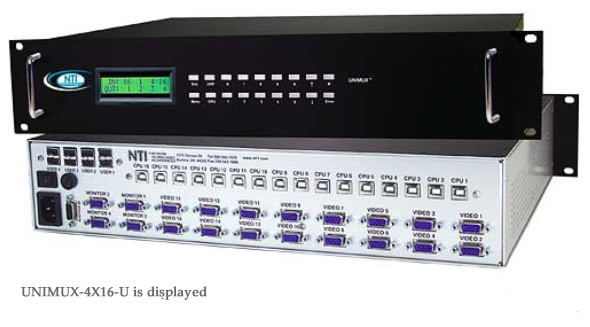

NTI UNIMUX-4X16-U VGA USB KVM Matrix Switch: 4x16
(No reviews yet)
Write a Review
- SKU:
- UNIMUX-4X16-U
- MPN:
- UNIMUX-4X16-U
- Condition:
- New
- Availability:
- In Stock Items Ship 1-2 Days Warehouse Direct To You From Ohio
Frequently bought together:
Description
NTI UNIMUX-4X16-U-USB 4x16 Matrix KVM Switch, HD15 VGA, RM
Hosts
- Sixteen female 15-pin HD and sixteen female USB Type B connectors.
- Supports USB-enabled PC, SUN and MAC computers with VGA video.
- Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
- Supports MAC soft (keyboard) power-on.
- Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
- Crisp and clear 1920x1200 resolution.
- Four Female 15-pin HD connectors.
- A multiscan VGA monitor is required to display the different video outputs from different platforms.
- Bandwidth is 150 MHz.
Cables
- Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
- Cables not included.
Environmental
- Operating temperature: 32°F to 100°F (0°C to 38°C)
- Storage temperature: -22°F to 140°F (-30°C to 60°C)
- Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Devices
- Four sets of female USB Type A connectors for keyboards and mice.
- Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
- Keyboard and mouse are hot-pluggable.
- USB MAC and SUN startup keys are supported on all platforms of input devices.
- Keystrokes are translated across platforms.
Power
- 100 to 240 VAC at 50 or 60 Hz
- Power consumption: 25W
- Add -48V5V10A, optional internal DC-DC converterto install the UNIMUX-4X16-U in a Telecom environment.
MTBF
- 50,289 hrs
Regulatory Approvals
- CE, RoHS
- TAA compliant
Warranty
- Two years
Compatible NTI Products
- Combine NTI emulators and switches for complex applications.
- VGA EDID Emulator (VGA-EDID-EMLTR2)
