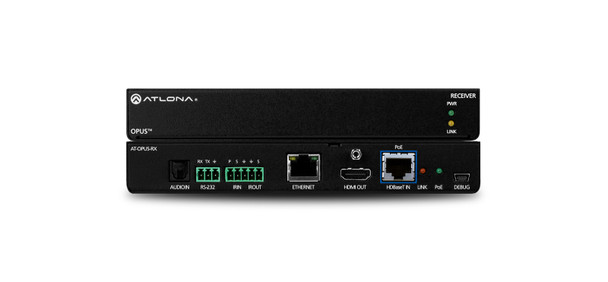

Atlona AT-OPUS-RX Ultra High Data Rate Extender Receiver w/IR, RS232, Ethernet

The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed for use with the Opus&trade, Series of HDMI to HDBaseT matrix switchers. The OPUS-RX is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension over HDBaseT with no latency. For additional integration convenience, the receiver is remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The OPUS-RX can transmit digital audio from a television back to an AV receiver through a dedicated HDBaseT audio return path to the matrix switcher.Applications Residential installations

• An Opus system of matrix switchers and OPUS-RX receivers is ideal as the AV distribution centerpiece for whole-house video and audio.

Commercial applications

• Opus systems are also ideal for a variety of light commercial, education, and corporate applications requiring compatibility with new and forthcoming devices for 4K presentations.

Key Features 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

• Ideal for with new and emerging 4K/UHD and HDR-capable sources and displays. Supports HDR10 @ 60 Hz and Dolby Vision @ 30 Hz, as well as HLG.
• Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification.

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection.
• Allows protected content stream to pass between authenticated devices.

HDBaseT receiver for HDMI, Ethernet, power, and control up to 330 feet (100 meters)

• Receives HDMI up to 330 feet (100 meters) @ 4K HDR using CAT6a/7 cable.
• Uses easy-to-integrate category cable for low-cost, reliable system installation.

Remotely powered by Opus matrix switcher via PoE (Power over Ethernet)

• Power for receiver is supplied by an Opus Series matrix switcher over HDBaseT.
• Allows convenient receiver installation at a display or projector without the need for local AC power.

Extends RS-232, IR, and Ethernet control signals over HDBaseT

• Bidirectional extension of RS-232, IR, and Ethernet control signals.
• Streamlines integration of control for displays.

Visually lossless VESA Display Stream Compression

• Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression.
• Innovative signal extension solution delivers very high, pristine image quality.

Delivers return audio from a TV via dedicated HDBaseT audio return path

• Provides a return audio pathway from a television, via TOSLINK digital audio interface, back to the Opus matrix switcher over HDBaseT.
• Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more.

Integrated HDBaseT link status monitoring

• Continuously monitors integrity of the HDBaseT cable link between the Opus matrix switcher and receiver. Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information.
• Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality.
