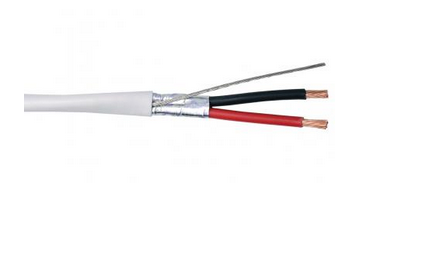

Liberty Cable 16-2C-PSH-WHT White Commercial grade general purpose 16 AWG 2 conductor plenum shielded cable 6200FE

Liberty 16-2C-PSH-WHT-COMMERCIAL 16/2 OASH CMP WHT

2 conductor 16 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor 16 AWG
19-strand annealed bare copper conductors
Diameter: 0.056" | 1.42mm
Electrical DC resistance: 4.38 Ω / 1000’ | 14.36 Ω/KM
Mutual capacitance: 52.0 pF/FT | 170.56 pF/M
Impedance: 36 Ω
Inductance: 0.15µH/FT | 0.49µH/M
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 6.25A@25°C
Insulation Plenum rated polyvinyl chloride
Wall thickness: 0.010" | 0.26mm
Diameter: 0.079" | 2.00mm
Regulatory NEC: CMP 75°C
CEC: CMP FT6 CMG 60°C
EU RoHS-2 2011/65/EU Compliant
Color Code Black, Red
Packages Reel: 1000’ | 305M
Reel: 2500’ | 762M
Weight: 32 Lbs/1000’ | 48 Kg/KM
Assembly 2 conductors twisted
Lay length: 3.0" | 80mm
4.0 twists per foot | 12.5 twists per meter
Installation Pull Tension: 42 Lbs | 187 N
Bend radius: 1.78" | 46mm unloaded
Bend radius: 3.56" | 92mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Construct Ripcord under jacket
Applications Plenum commercial speaker audio
Plenum 70V speaker
Plenum class 2 power
Shield 100% aluminum/polyester tape foil out
24 AWG 7-strand tinned copper drain
Performance Speaker level audio to 50 feet
Jacket Plenum rated polyvinyl chloride
Colors: Natural White, Black
Wall thickness: 0.014" | 0.36mm
Diameter: 0.178" | 4.53mm

Belden 6200FE

Features and Benefits
Stranded annealed bare copper conductors
Plenum rated PVC alloy insulation
Twisted, shielded
Plenum rated PVC jacket
NEC CMP, CEC CMP FT6, RoHS compliant
Applications
Speaker level audio distribution
70V speaker systems
DC power, class 2 and class 3 power, system control
