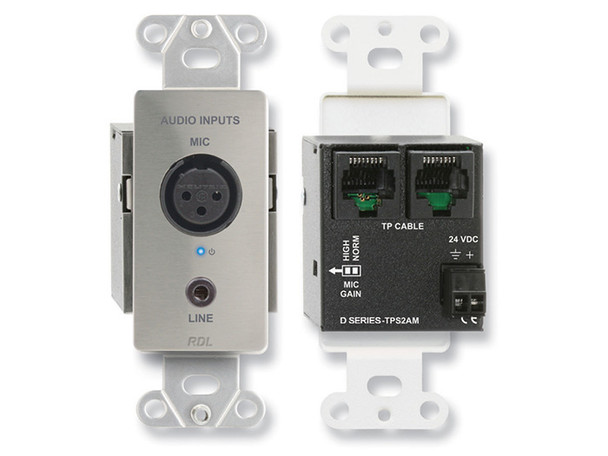

Radio Design Labs DS-TPS2AMC Active Two-Pair Sender - Twisted Pair Format-A - XLR microphone (Custom Labeled)

Active Two-Pair Sender - Twisted Pair Format-A - XLR microphone &, stereo Mini-jack in - Stainless (Custom Labeled) (See Part # ZCST-LBL for setup charge) ,The D SERIES-TPS2AM modules are two-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPS2AM models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS2AM features a white front-panel laminate with gray lettering that matches RDL Decora-style remote controls. The DB-TPS2AM features a black front-panel laminate. The DS-TPS2AM is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations. The D SERIES-TPS2AM modules features an XLR microphone input and a stereo Mini-jack input summed to mono. The unbalanced Mini-jack inputs are designed to receive standard -10 dBV consumer level signals. The microphone input provides 24 Vdc IEC phantom voltage and accepts both dynamic and condenser microphone signals. The input signals are amplified using studio-quality preamplifiers optimized for normal operating levels. A rear-panel GAIN switch is provided to set the amplification of the microphone preamplifier. This switch is normally set by the installer for NORM (normal) ga" If consistently low mic levels are expected, this switch may be set to the HIGH gain position. The pre-amplified microphone source is routed to pair A. The buffered Mini-jack input is routed to output cable pair B.
