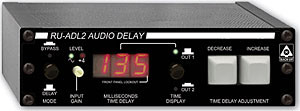

Radio Design Labs RU-ADL2 Professional Audio Delay

Rear panel terminals provide full remote control of the RU-ADL2 including a LOCKOUT terminal to disable the operation of the front-panel time adjustment buttons. All audio connections are made through XLR connectors or on full sized barrier block terminals provided on the rear panel. The INPUT GAIN is adjustable and is equipped with a front-panel dual-LED LEVEL meter that follows standard VU ballistics. A green LED illuminates at 15 dB below +4 dBu, becoming progressively brighter with increasing audio level. The adjacent red LED illuminates when the audio level exceeds +4 dBu. The output levels are fixed at nominal unity ga" The RU-ADL2 operates from ground-referenced 24 VDC power, connected either to barrier block terminals or through a power jack on the rear panel. The RU-ADL2 may be used as a standalone delay, or its input may be connected in parallel with multiple RU-ADL2 modules to provide additional delayed outputs.
