Radio Design Lab

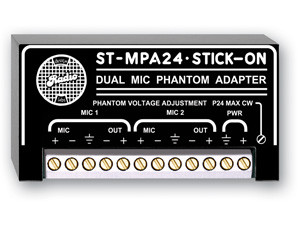

Radio Design Labs ST-MPA24 Microphone 24 V Phantom Adapter - 2 Channel (Replaces ST-MPA2)
(No reviews yet)
Write a Review
- SKU:
- ST-MPA24
- UPC:
- 813721012364
- MPN:
- ST-MPA24
- Condition:
- New
- Availability:
- In Stock Product Ships Direct From RDL In AZ 1-2 Days
On Sale
Frequently bought together:
Description
Module operation is from a 24 Vdc ground referenced power supply. The ST-MPA24 has an internal pass transistor-regulator filter circuit which permits this incoming voltage to be adjusted to the desired phantom voltage, up to 92% of the supply input voltage. A multi-turn trimming potentiometer is provided to reduce the phantom voltage if desired. In the default fully clockwise position, the ST-MPA24 provides "P24" 24 Vdc phantom voltage conformant to IEC 61938.
