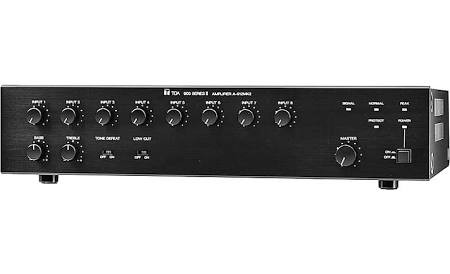

TOA A-903MK2 900 Series 8-Channel Mixer Power Amplifier Modular

,Download The TOA A-903MK2 Manual Here Free

,

Avalive Presents the TOA A-903MK2 Mixer Power Amplifier controls and mixes up to eight independent input signals. The Mixer Power Amplifier delivers up to 30 watts of output power. Optional plug-in modules are available for use with mixer power amplifier to provide versatility for a wide range of operating applications.The A-903MK2 (30 W), A-906MK2 (60 W) and A-912MK2 (120 W) Modular Mixer/Amplifiers are engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.Eight module slots allow you to easily configure custom configurations choosing from over fifty TOA plug-in modules with an extensive array of features and connector types. You can increase the input capacity by connecting a second mixer or mixer/amplifier to the rear-panel Bridge In/Out jack.

Outputs include transformer isolated 25 V, 70 V and 8 ohm (A-903MK2: 4 ohm) plus a direct low-impedance mode if non-transformer operation is required. Multiple paging priorities are easily configured using optional mute-type modules activated by external switch-closure or mute-send modules. Pre-Out/Power-In jacks allow connection of external signal processing between the mixer and amplifier sections. Other features include protection circuitry, auxiliary output, bass/treble controls and remote master volume terminals. The 900 Series Mixer/Amplifiers are UL and cUL Listed and carry a five year warranty.
