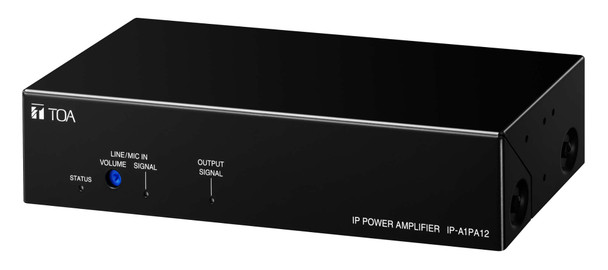

TOA IP-A1PA12 IP Power Amplifier 12W

Compact 12 W amplifier which is designed to amplify audio signals received through network. It is equipped with 25 V, 70 V, and 100 V speaker line outputs to drive wide range of high impedance speakers

The IP-A1PA12 is a compact 12 W amplifier which is designed to amplify audio signals received through network. It is equipped with 25 V, 70 V and 100 V speaker line outputs to drive wide range of high impedance speakers. With an external amplifier input capability, speaker(s) can be driven by internal amplifier or external amplifier by switching over. It allows integrations with IP camera systems by using ONVIF protocol, paging from IP phone systems by using SIP protocol and group broadcast by multicast streaming. Max. 20 audio files can be registered and they can be played back by control inputs or remote API (HTTP) commands.12W amplifier to drive 100/70/25V line speakersReceive SIP audio, ONVIF Audio and MulticastLocal broadcast using internal audio files or local audio sourceExternal amplifier input (100/70/25V) to share speakers between the built-in amplifer and external PA amplifier to be switched over1 audio input (LINE/MIC selectable, phantom power On/Off)2 control inputs, 1 control output and 1 mute control inputHTTP commands (receive)Audio file storage (20 files, total 80MB, WAV/MP3)Playback programs (Repeat, Weekly Timer)PoE+ powered
