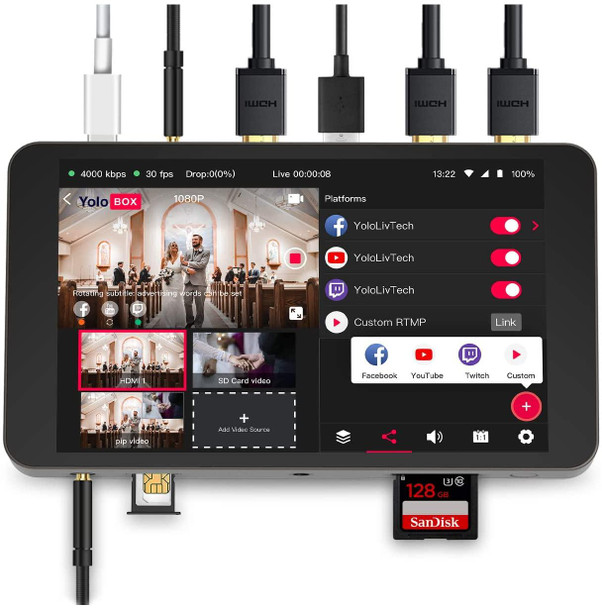

YoloBox Portable Multiple Live Streams 7 Inch Screen Switcher Encoder

Yolo Liv's YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p60, using the H.264 codec. You can stream to YouTube via custom RTMP settings. Stream using a 4G Cellular network such as Verizon, T-Mobile, and AT&T. The YoloBox features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot.

Small in Size, Big in Pro Capabilities .
The industry’s first REALLY All-IN-ONE live production system that doesn’t require anything external. It’s simple, portable, reliable and affordable.

Specs:
Encoder, switcher, recorder, monitor, in One
Live switch up to 6 video sources
No computer/desk workstation required
Great ease to operate, touchscreen control
Super portable, fit into your pocket
Support 4G LTE & built-in battery - Live On the Go

Premium Features Included:
Additional software features will be continuously added by our dedicated engineering team.
Stream Simultaneously to Multiple Destinations
Stream to Facebook, YouTube, and any other RTMP(S) websites at the same time to get more views
Add Video Sources From Local SD Card
Roll in pre-recorded video for intro, countdown, B-rolls or special segments
Load PDF as an Extra Source Locally
Enhance the storytelling by one extra source

Add Overlays For a Pro Look
Now you can even have Side-By-Side and Split-View directly on YoloBox.
Brand Your Live Stream By Adding Logos/Watermarks/Rolling Captions
An even more professional look with customized PiP options including Interview Mode
Feature Comment Overlays to the Stream
Engage with your audience in real time
Add Customizable Scoreboard
Display real-time controlled scoreboard to make your game look professional
Add and Edit on the Built-In Lower-Thirds Templates
Be it an intro of the speaker or Call-To-Action messages to drive viewers’ actions

3 Simple Steps
YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness
CONNECT
Connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug your camera into YoloBox, you are way to go.
CAPTURE
YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.
STREAM
Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.
YoloLiv provides you an innovative experience of livestreaming
Yolobox is an intelligent solution which can be used in many diversified livestreaming activities, you can start your livestream from anywhere to anytime.
Whatever you live stream for, YoloBox will improve your overall production. Take a look at what makes YoloBox a fit for your use case.
Worship
With YoloBox you could livestream and record a sermon all yourself, no profesional team required, without the need for a big budget. Let YoloBox take your worship service beyond the bounds of the building to reach out more with your community.
Videographer
Whether you’re working on a project for a corporation, organization or wedding, YoloLiv can make your livestream events easier by providing integrated live product. With reduced costs and setup times, YoloLiv allows you to add a new dimension to your business.

Government Pricing Discounts Available

Livestreaming local government meetings ensures that all members of a community are able to "attend," whether they can be physically present or not.

Sports
From high school games to performance training to sports evaluation, YoloBox is a must-have in the world of sports. And with multiple angles and a multi-view view being streamed live, both the fans and players will be asking you to see the highlights.
Education
Now your school can host live, multi-angle livestreams of the classroom, pep rallies, special performances, club activities – whatever’s going on that week. And at the center of it all is YoloBox.
Corporate
Take corporate events to the next level by streaming quarterly meetings from multiple angles and with minimal effort. YoloBox makes it easy for your company to create live-switched, multi-angle video from almost anywhere.

What else you can do with YoloBox
Real Estate
Cooking
Marketing
Sales
Nonprofit
Events

Switcher with integrated encoder
2 HDMI IN: Video input
1 USB OUT: Video output
HDMI OUT: Video input
3.5 mm audio line in
RTMP
Record to an SD card or USB external drive
Ethernet: Connect to Internet by Ethernet cable
AUDIO IN: Connect with lavaliar microphone or mixer
TYPE-C: Power connector
AUDIO OUT: Connect with headphone for sound monitor
Sim Card Slot: Insert SIM Card to get into Internet
HOTSHOE: Mount YoloBox with camera
SD Card: Insert SD card for local assets
Power Button: Turn on and turn off
Dimensions and Weight
Length：185mm
Width：107mm
Height：19.5mm
Weight：480g
Encoded Format
Video Encoded Format：H.264
Audio Encoded Format: AAC (48k)
Video Recorded format: MP4
Audio Input Format: 32kHz, 44.1kHz, 48kHz, 16-bit
Video Input Format: 1080i/ 720p/ 1080p
Live Broadcast Resolution: 480P/720P/1080P
Video Storage
Storage Card Type: SD Card
Storage Card Capacity: Expanded to 128G
Network Connection
WiFi: 2.4G/5G, Support 802.11a/b/g/n/ac
4G Network Countries & Frequency Band
For US/Canada/Mexico Users:
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
For Non-US/Canada/Mexico Users:
B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
SIM Card Size: Standard SIM Card
Power
Power Interface: Type C, Quick Charge 3.0
Battery Capacity: 3.7V/5700mAh
Transmission
Network Protocol: RTMP(S)
Working Environment
Operating Temperature：-10℃-40℃
Storage Temperature: 5℃-40℃

YoloBox Includes:
Instruction Book
Tripod mount
Power Adapter
2x HDMI Cables
USB Modem
Carrying case
