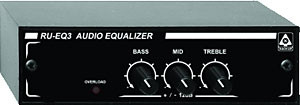

Radio Design Labs RU-EQ3 Three Band Equalizer with Knobs - Terminals

The RU-EQ3 features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 Ω, balanced, and is intended to drive unbalanced or balanced lines of 150 Ω, or higher impedance. Front-panel knobs provide active equalization, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Each band',s center frequency can be either boosted or attenuated by at least 12 dB. The Q of the low and high band equalizers was selected so that those controls can be functionally considered as a total bass band or treble band control. The RU-EQ3 adds a third control. This midrange control is optimized to voice band adjustment, with the overlap tailored to provide smooth operation for wideband music applications. The RU-EQ3's OVERLOAD indicator flashes if either the input or output stage clips.
